Blighter Scout Vehicle Mobile Radar and Camera System
- Legacy product - not recommended for new projects
- Lightweight vehicle mountable integrated radar and electro-optic (EO) surveillance system
- Blighter Orbiter or Revolution 360 for rapid target detection and location in all terrains (dual Blighter B303 option)
- Integrated radar tracker option (‘BlighterTrack’)
- Hawkeye robust, high performance EO camera system for target recognition & identification
- Compact surveillance system can be mounted to standard telescopic masts for rapid deployment
- Low power consumption and high reliability
- Options for LRFs and video tracking
- Rapid deployment and orientation with GPS compass
- All controlled through the BlighterView HMI 2, enabling auto-cueing with manual override
Blighter Scout is a complete radar and camera system for installation on vehicles (or towable trailer masts). It can be rapidly deployed when the vehicle is on the halt and provides target detection, location, recognition and identification... READ MORE
Enquire about this productBlighter Scout is a vehicle mobile radar and camera system that provides a surveillance capability for situations where fixed towers are prohibitively expensive, impractical to build or simply ineffective due to terrain or environment. Blighter Scout enables security forces to move the surveillance platform to pre-empt or follow intruder routes as they adapt to the seasons or in reaction to interdiction.
Blighter Scout is based on the Blighter Orbiter or Blighter Revolution 360 radar, both fitted with wide 20° elevation beam antennas. These allow it to operate in hilly terrain, where it can scan the tops of hills and down into valleys in a single sweep. A dual Blighter B303 option is also available. Blighter’s PESA electronic scanning technology allows it to ignore ground clutter yet rapidly detect small and slow moving human targets and vehicles. The radar platform allows the Blighter Scout system to achieve a full 360° of surveillance with a single lightweight and low power radar sensor.
Hawkeye EO Camera System
The Blighter Scout platform may be integrated with a range of EO camera systems. The recommended complementary system is the Hawkeye EO platform featuring the Piranha MRTV or LRTV high sensitivity colour daylight TV cameras and a Piranha TV wide field of view context camera. Coupled to this is the optional thermal imaging camera, which produces outstanding image quality day or night. The EO system is mounted on a robust pan/tilt mechanism. This highly reliable platform provides a simple modular mounting system for easy detachment of the sensors when maintenance is required.
BlighterView HMI 2
The Blighter Scout vehicle mobile radar and camera system is integrated and controlled through the BlighterView HMI 2. This Microsoft Windows based Command and Control (C2) application provides a clear display of the radar detections overlaid onto a map. Simple camera controls are provided to enable the EO system to be either automatically or manually controlled through BlighterView HMI 2. Alert zones can be prioritized to enable the camera to be cued to those alert zones or to follow an established track. This simple automation relieves operator burden and allows more time for threat assessment. An optional video tracking application allows the EO system to automatically follow an intruder once the radar has cued it to the target location.
Vehicle Mobile Radar and Camera System

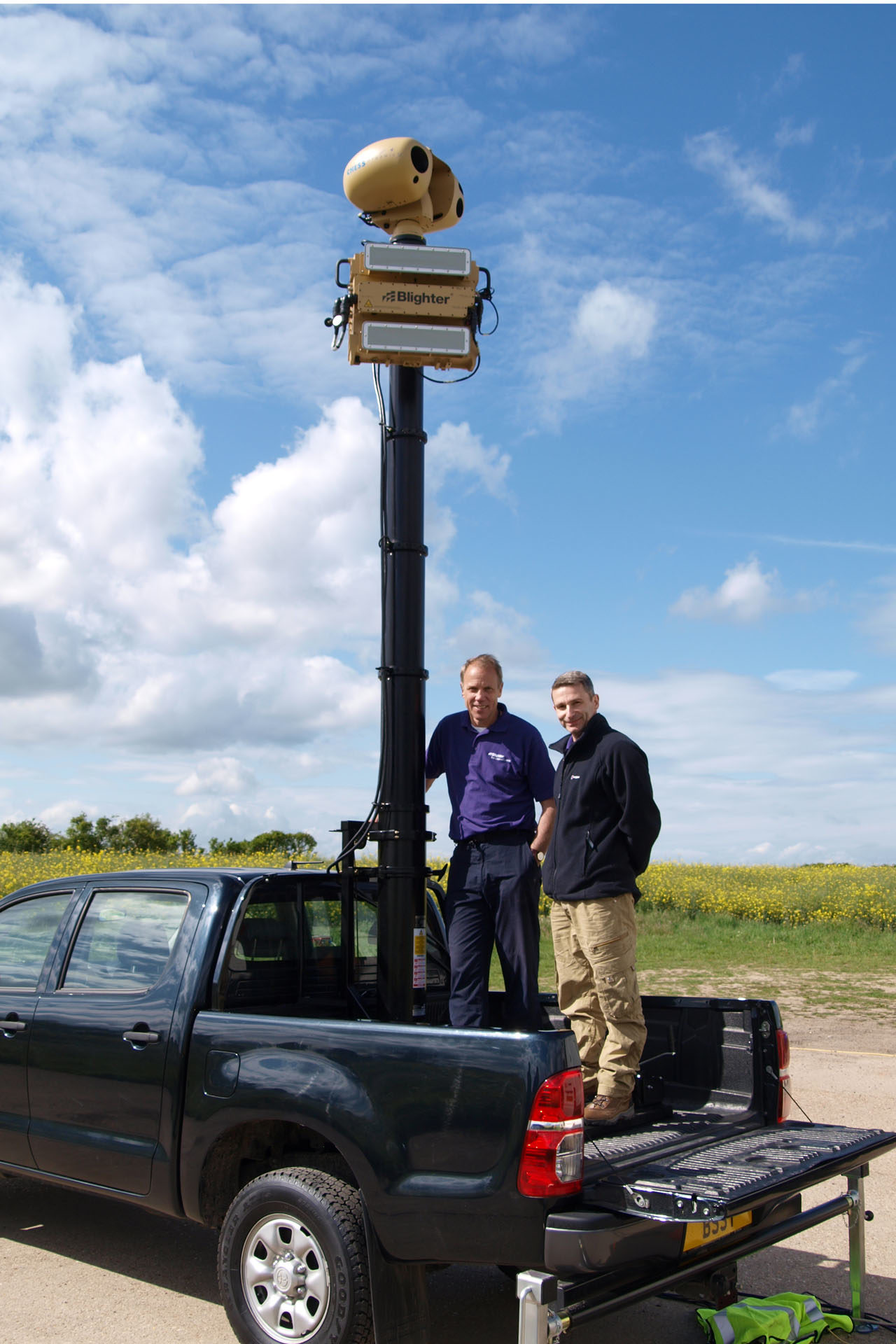

The Blighter Scout platform is designed to mount on industry standard telescopic masts. A typical six metre hydraulically extending mast allows Blighter Scout to look over the tops of surrounding vegetation and achieve optimum detection ranges from its sensors.
Blighter Scout requires only a single mast, with the EO system mounted on top for a full 360° unhindered view, with the radar either rotating around the mast section directly below it (Blighter Orbiter or Blighter Revolution 360 option) or fixed to the sides of the mast (Dual Blighter B303 option). All radar options offer a full 360° of coverage.
Radar Specification Option 1: Single Blighter Orbiter or Revolution 360 Radar
Architectural Overview
- Radar type: E-scan Frequency
- Modulated Continuous Wave (FMCW) Doppler Ground Surveillance Radar
- Scan type: electronic-scanning in azimuth (‘e-scan’) using a Passive Electronically-Scanned Array (PESA)
- Pan type: fully integrated positioner allowing 360° surveillance
Target Detection Performance
- Maximum detection ranges:
- Crawling person (RCS 0.1 m2): 3.2 km (2.0 mi.)*
- Walking person (RCS 1 m2): 7.4 km (4.6 mi.)*
- Moving vehicle (RCS 30 m2): 16.0 km (9.9 mi.)*
* HP version
Radar Specification Option 2: Dual Blighter B303 Radars
Architectural Overview
- Radar type: E-scan Frequency
- Modulated Continuous Wave (FMCW) Doppler Ground Surveillance Radar
- Scan type: fully electronic-scanning in azimuth (‘e-scan’) using a Passive Electronically-Scanned Array (PESA)
Target Detection Performance
- Maximum detection ranges:
- Crawling person (RCS 0.1 m2): 1.5 km (0.9 mi.)
- Walking person (RCS 1 m2):3.3 km (2.1 mi.)
- Moving vehicle (RCS 30 m2): 8.0 km (5.0 mi.)
EO Camera Specification
Architectural Overview
- Type: Hawkeye EO platform
- Pan tilt head: rugged Cobra PTH
Sensor Options
- Context camera (wide FoV):
- Type: 36x zoom colour TV camera
- D/R/I (Person): 3.0 / 1.0 / 0.6 km
- D/R/I (Vehicle): 6.0 / 2.0 / 1.4 km
- Medium range camera:
- Type: Piranha MRTV
- D/R/I (Person): 8.0 / 2.5 / 1.5 km
- D/R/I (Vehicle): 25.0 / 13.0 / 9.0 km
- Long range camera:
- Type: Piranha LRTV
- D/R/I (Person): 14.0 / 8.0 / 5.0 km
- D/R/I (Vehicle): 38.0 / 15.0 / 10.0 km
- Thermal imaging camera:
- Specification available on request
Errors and omissions excepted. Blighter Surveillance Systems Ltd reserves the right to modify specifications without notice. Blighter radars are protected by a number of international patents. The Blighter name is an international registered trademark.
BSS-0307 © 2019 Blighter Surveillance Systems Ltd
